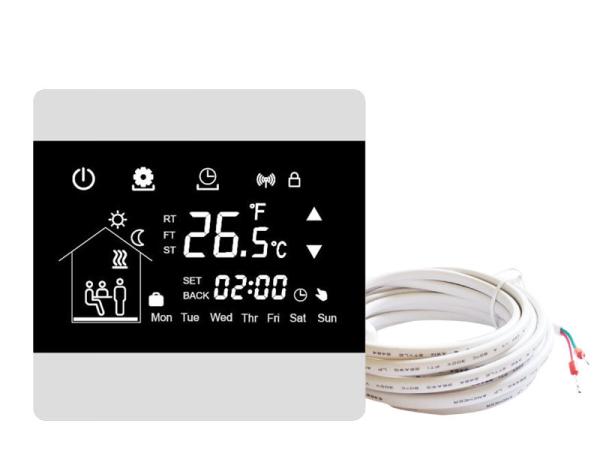

Wall Mount Touch Screen Thermostat AC230V 50Hz With HVAC Systems

Name: Wall Mount Touch Screen Thermostat AC230V 50Hz With HVAC Systems
Brand: Saiko
Price: 1 USD

Wall Mount Touch Screen Thermostat AC230V 50Hz With HVAC Systems Manufactures

Brand Name : Saiko

Model Number : SK82

Certification : CE

Place of Origin : Jiangsu

MOQ : 1PCS

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 2000PCS/WEEK

Delivery Time : 3-5 workdays

Packaging Details : 64PCS/CTN (CTN SIZE:435*395*290mm)

Type : Floor heating Systems

Voltage : AC230V,50Hz

Current load : 16A

Setting range : +5~+60℃

Floor sensor : NTC sensor

Accuracy : 0.5ºC

Color : white

Protective housing : IP20

Contact Now

Underfloor heating wall thermostats floor heating thermostat controller
Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called events each day with corresponding pre-set temperatures, also you can select "period control mode" or "manual mode" according to your individual requirements.

The SK82 series Heating room Thermostat has been developed to control electric underfloor . These units are designed for use in commercial, industrial, civil and domestic properties.
Now you don't need to choose between saving money or staying comfortable. The thermostat can help you save up energy costs every year when you use a pre-set heating program schedule. When you use our intuitive mobile app, you can adjust your room thermostat schedule around your life, so you're not needlessly heating an empty home.

Technical data

Power Supply	AC200-240VAC 50/60HZ
Accuracy	±0.5ºC
Probe sensor	NTC
Power Consumption	<0.3W
Load current	3A(water heating),16A(electric heating)
Temperature Adjustable Range	5°C~60°C( can adjust to 35°C~60°C)
Limit Temperature Range	5°C~60°C( factory setting: 35°C)
Output	Switch relay
Insulating condition	Normal environment
Running program	Set per 1 week as a cycle
Installation	Wall mounted
Application	Water Floor Heating System
	Electric Floor Heating System
	Infrared Heater System
Certificate	CE,RoHS

Advanced setting (qualified person preferred)
You can press "M" and"Time"and hold for 5 seconds at the same time to enter the mode of advanced setting when the thermostat is turned off. The following seven function can be chosen by pressing "M".

Symbol		Setting	Up or Down
1	ADJ	Temperature calibration	Adjust measured temperature
2	SEN	Sensor mode	IN: built-in sensor OUT: floor sensor ALL: both sensors (floor sensor is the limit sensor)
3	LIT	Limitation temperature	Adjust limitation value, Limitation range:5℃~50℃
4	DIF	Switching differential	Adjust switching differential
5	LTP	Antifreeze function	Turn on/off Anti-frozen function
6	PRG	Set vacation mode	2: 5/2 day mode 1: 6/1 day mode 0: 7 day mode
7	RLE	Potential-free output	00: in same way 01: in different way
8	DLY	Potential-free output delay	Change the delay time
9	HIT	Max. Temperature	Max. Limitation temperature set point (99℃)
10	AFAC	Reset to factory settings	Programming parameters will be reset to factory settings when symbol "" appears

Writing Diagram

Packaging Details	UNIT WEIGHT: 0.35KG/PC; 64 PCS/CTN; GROSS WEIGHT: 22.4KG; PAPER BOX PACKING; BOX DIMENSION: 424029CM
Delivery Detail	Shipped in 15 days after payment
