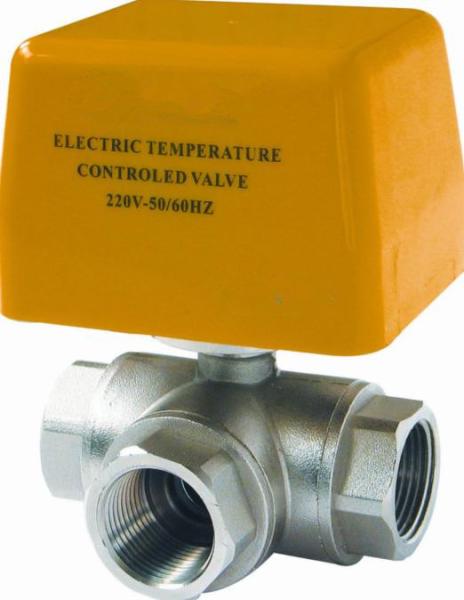

High Precision Brass Electric Ball Valve / Electrically Controlled Water Valve

Brass Motorized Ball Valve / Electric Motor Operated Ball Valve

SQ series ball valve is widely used in central air-conditioning cool/heat water system. It can accurately control the flow of cool/heat medium depending upon the requirements of the given application, and can not result in sudden change of temperature and to control the room temperature accurately.

Features

1) Smooth flow, no block up.
2) High flow capability, 3 times flow rate more than traditional zone valves.
3) Tight close, no leakage.
4) The power is cut off when the valve reaches the on/off position. This ensures long life service for the actuator.
5) The actuator cover adopts close structure which is resistive to humidity and ensures reliable operation for motor.

Models

SQ15 2-way, DN15 (15mm), 3-wire; SQ15-3 3-way, DN15 (15mm), 3-wire

SQ20 2-way, DN20 (20mm), 3-wire; SQ20-3 3-way, DN20 (20mm), 3-wire

SQ25 2-way, DN25 (25mm), 3-wire; SQ25-3 3-way, DN25 (25mm), 3-wire

Technical data

Valve type…………………2-way/3-way ball valve

Pressure class……………..PN16(1.6Mpa)

Supply voltage: 220VAC±15%, 50/60Hz, 110V, 24V

Connection……………………..G(inner thread)

Fluid temperature………….2℃~90℃

Valve body…………….Bronze

Protection class…………….IP55

Power consumption…………..6W(only when valve position is changed)

Opening and closing time……………..16S/50Hz,12S/60Hz

Writing Diagram

motorised ball valve

electrically operated valve
