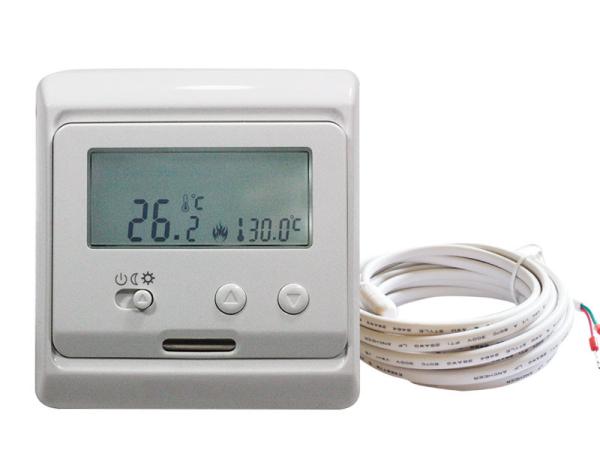

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

Name: Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat
Brand: Saiko
Price: 1 USD

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat Manufactures

Brand Name : Saiko

Model Number : SK31

Certification : CE

Place of Origin : Jiangsu

MOQ : 64PCS

Price : Negotiation

Payment Terms : Western Union, T/T, L/C

Supply Ability : 10000PCS/WEEK

Delivery Time : 10 workdays

Packaging Details : inner box: neutral packing with label; 64pcs/ctn

Type : Floor Heating Systems

Voltage : 230V, 50Hz

Power Consumption : 2W

Sensor : NTC internal/external sensor

Setting range : 5-95℃

Switch differential : 0.5-10 adjustable

Contact Now

Easy Heated Floor Digital Heating Temperature Control Electric Heating Thermostat

Heating thermostat with LCD screen, which has manual mode and energy saving mode. The thermostat is recommended for the control of electric heating device or on/off valve actuator in hydronic underfloor heating.

Technical data

Voltage: 220V-240V

Power Consumption: 2W

Setting Range: 5-35℃(Can adjust to 5-90℃)

External limitation: 5...60℃(Factory setting: 35℃)

Sensor: NTC internal/external sensor

Switch differential: 0.5-10 ℃adjustable (Factory setting: ±1℃)

Ambient temperature:-5-50℃

Protection housing: IP20

Housing material: Anti-flammable PC

Package

Individual white box and outer carton, 64pcs in one carton

Dimension:mm

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

Display symbol

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat

Wiring Diagram

Sensor failure

Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.

Product Tags:

electric underfloor heating thermostat

underfloor heating programmable thermostat

Underfloor Heating Programmable Thermostat 230V 50Hz Radiant Heat Thermostat Images
